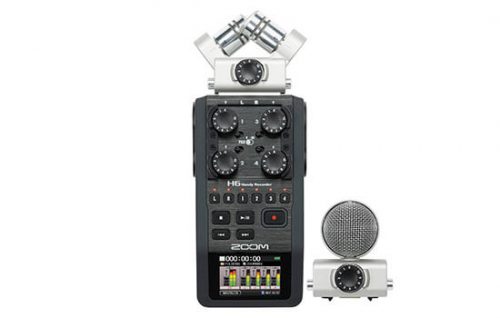

Description The H6 Handy from Zoom is a portable handheld recorder and USB audio interface that features an interchangeable microphone system.The H6 Handy allows for versatile recording techniques, giving you several options right out of the box. The included XYH-6 XY microphone module is made up of two matched unidirectional condenser microphones and is intended for capturing accurate, phase-correct stereo audio. The module allows you to adjust the angle of the two mics to either 90 degrees, or for a wider stereo image, 120 degrees. For situations that call for audio that allows for width control over your stereo image after it has been recorded, the XY module can be switched out for the MSH-6 mid-side stereo microphone module. Contrary to the appearance of the capsule, the mid-side module actually contains two elements positioned on top of one another: a unidirectional mic which faces forward (mid), and a bi-directional mic set perpendicular to it (side). In addition to providing you the ability to adjust the width of your stereo audio after it has been recorded, MS recording also provides true mono compatibility, a factor that comes into play in situations such as television production. Video Production Services We’re here to help your Brisbane or Gold Coast business blast off with creative ideas and stunning videography for your corporate videos. Get a Quote! In addition, the H6 is equipped with four XLR/TRS combo inputs for connecting external mic/line sources such as microphones or mixers. All four inputs and each of the mic modules are equipped with their own preamps with dedicated gain knobs that are easily accessible whether you have the unit mounted to your camera, or strapped over your shoulder. Also, each of the four combo inputs has its own -20dB pad. The recorder allows you to record up to six channels at once and stores them to SDXC memory cards up to 128GB in size. It also features a backup-record option that tracks a duplicate of the left and right channels with -12db input gain. This means that if you find that you have tracked your main audio too loud and that distortion has occurred in your audio, you will have a backup stereo mix with 12 db more headroom as a fail-safe. Main Features Large full-color angled LCD display that allows visibility whether mounted on a camera or strapped over shoulder XYH-6 X/Y capsule also provides a secondary input for connecting an external mic or line level signal via stereo 1/8″ mini jack Built-in speaker, located on the underside of the unit, for fast monophonic monitoring of the recorded signal without the need to make any connections Interchangeable input capsules that can be swapped out as easily as the lens of a camera Six-track simultaneous recording Four mic/line inputs with XLR/TRS combo connectors Physical gain control knobs and -20dB pads for each input Phantom power for all main inputs: 12/ 24/ 48V Records directly to SD, SDHC and SDXC cards up to 128GB Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats Auto-record, pre-record and backup-record functions Multitrack to stereo internal mixdown Independent monitor and playback mixes Graphical VU meters Voice memo and up to 99 marks per recording Overdubbing, up to 99 takes Built-in effects, including low-cut filtering, compression and limiting Onboard MS decoding Normalize, Divide and Trim editing Chromatic tuner and metronome Loop Playback with user-defined start and stop points Variable playback speed, from 50% to 150% Variable pitch per track without affecting playback speed USB port for data exchange to and from computer Multichannel and stereo USB audio interface for PC/Mac/iPad Mounts directly to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter Accepts standard AA alkaline or NiMH rechargeable batteries Over 20 hours of operation with 4 AA alkaline batteries
