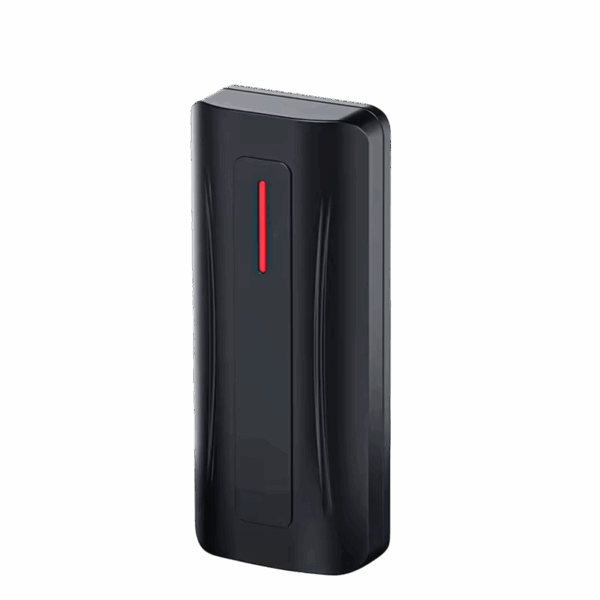

DescriptionFeaturesAvailable in 125kHz (EM) or 13.56MHz (MIFARE) RFID card compatibility.Wiegand 26/34 output format for integration with access control panels/boards/terminals.IP68-rated waterproof and dustproof enclosure, safe for outdoor use.High-speed reading with response time under 0.1 seconds.Equipped with LED indicator and internal buzzer for visual and audible feedback.SpecificationsCard Type: RFID 125kHz or 13.56MHzOperating Voltage: DC 9–16VCurrent Consumption: < 30mA (standby)Reading Distance: 2–5 cmOutput Format: Wiegand 26 / Wiegand 34Waterproof Rating: IP68Operating Temperature: -45°C to 60°CHumidity Range: 10%–90% RHDimensions: 109 mm × 47 mm × 20 mmMaterial: High-durability ABS plastic housingWhat’s Included1 × RFID Card Reader (125kHz or 13.56MHz)1 × Pre-wired Cable Harness1 × Mounting Hardware Set1 × User ManualDesigned for secure and efficient access control, this IP68-rated Wiegand RFID reader delivers reliable performance in demanding environments.
